YJ-PS网络机柜
产品图片 / 机柜

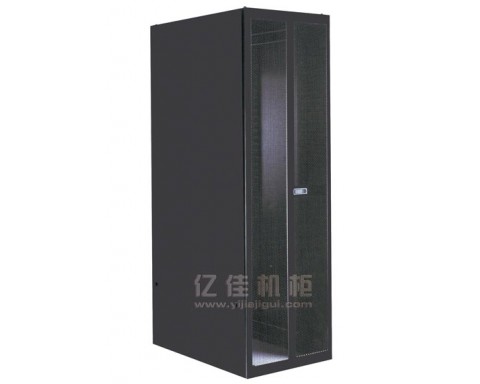

名称：YJ-PS网络机柜
型号：YJ-PS
规格：可根据客户需求定制
详细介绍

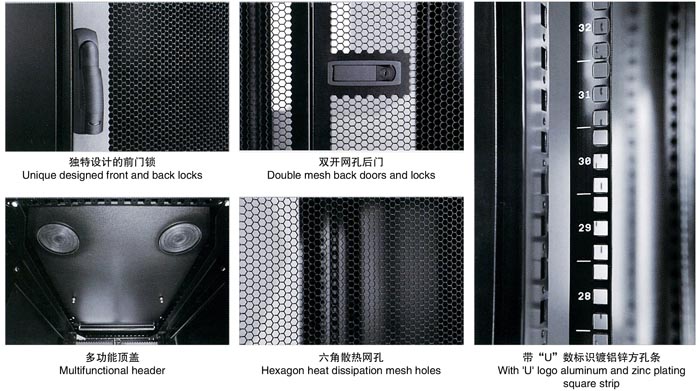

特点：九折型材框架，静态负载可达1000公斤，单开前门，双开后门，使用130°铰链；前门三点式摇把锁、后门按压式弹簧锁，78%的通风率，多功能顶盖 ★标准：符合ANSI/EIA RS-310-D、IEC297-2、DIN41491 PARTl、DIN41494：PART7、GB／T3047.2-92标准，兼容ETSI标准 ★材料：SPCC优质冷轧钢板制作 ★厚度：方孔条 2.0mm骨架和安装梁 1.5mm其他 1.2mm ★表面处理：安装梁、方孔条本色；其余：脱脂、磷化、静电喷塑
★Ninety percent profile static load of up to 1000 kg, single opening the front door hinge line USES 130°, the front three point crank press type spring lock lock the back door.A ventilation rate of 78%, the multi-function ★Standard: in accordance with ANSI/EIA RS - 310 - D, IEC297-2, DIN41491 PARTl, DIN41494 PART7, GB/T3047.2-92 standard, compatible ETSI standards ★Material (SPCC) of high-quality cold-rolled steel plate ★ The thickness of the square hole (2) of article Omm skeleton and install beam other 1.2 mm, 1.5 mm ★ Surface treatment installation beam, square hole as the rest of the degreasing, phosphating, electrostatic pensu
★Ninety percent profile static load of up to 1000 kg, single opening the front door hinge line USES 130°, the front three point crank press type spring lock lock the back door.A ventilation rate of 78%, the multi-function ★Standard: in accordance with ANSI/EIA RS - 310 - D, IEC297-2, DIN41491 PARTl, DIN41494 PART7, GB/T3047.2-92 standard, compatible ETSI standards ★Material (SPCC) of high-quality cold-rolled steel plate ★ The thickness of the square hole (2) of article Omm skeleton and install beam other 1.2 mm, 1.5 mm ★ Surface treatment installation beam, square hole as the rest of the degreasing, phosphating, electrostatic pensu
